Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge

Contactar ahora

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge

Cantidad de orden mínima :	1 pieza	Detalles de empaquetado :	254 × 90 × 210
Tiempo de entrega :	7 semanas días	Condiciones de pago :	Los datos de las operaciones de transferencia de los Estados miembros a través de la Unión Europea s
Capacidad de la fuente :	5000PCS/MONTHS

Lugar de origen:	China.	Nombre de la marca:	MF
Certificación:	CCC, CE, EMC, ETL, GS, RoHS, SAA	Número de modelo:	MF-LI-B2-D

Información detallada
Fuente de luz:	LED	Los colores disponibles:	Rojo (Otro color es opcional)
Intensidad:	≥32.5CD (Tipo B), Otros opcionales (10CD, 100CD, etc.)	Producción horizontal:	360
Divergencia vertical:	≥ 10 años	Características de destello:	De combustión continua/20/30/60 ajustable
Modo de trabajo:	Principal y hacer una pausa (otros modos son opcionales)	Duración del LED:	Operación como opción. Experiencia de vida útil del LED (Horas) >100
Voltado de funcionamiento:	DC (48VDC) &AC (110-240VAC) u otros	Potencia:	5W
Protección de circuitos:	Se ha integrado	Material del cuerpo:	de policarbonato
Material Base:	Aluminio de fundición a presión
Resaltar:	UV-Resistant Aviation Obstruction Light , Adjustable Aviation Obstruction Light

Descripción de producto

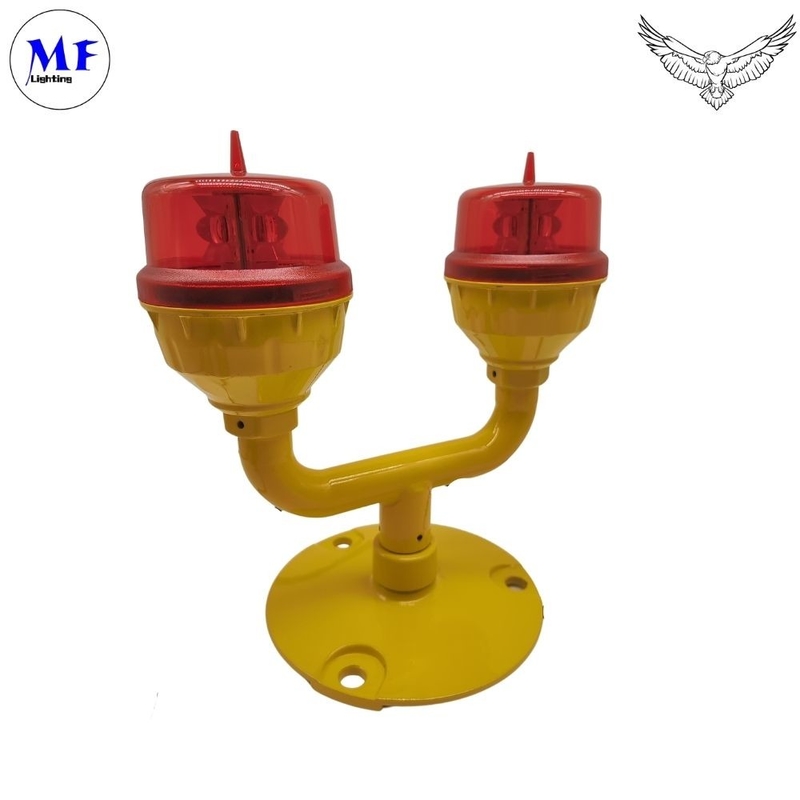

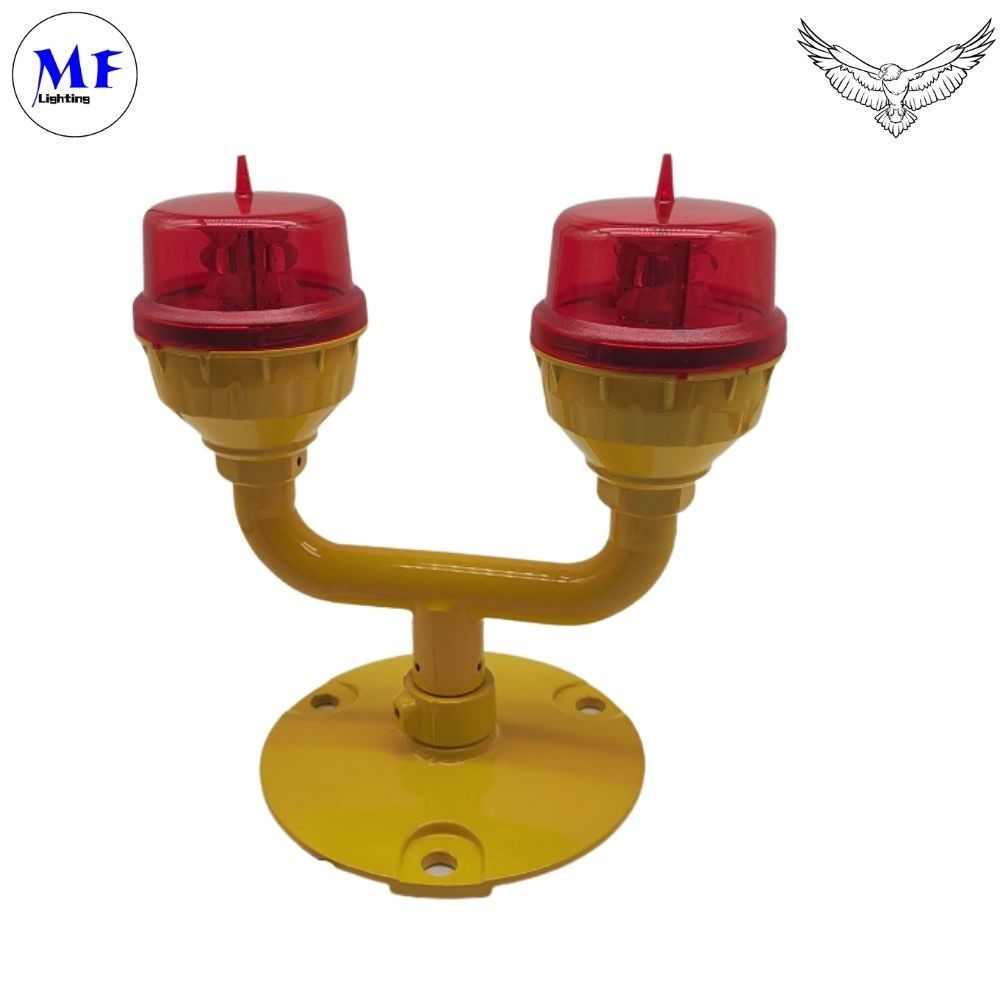

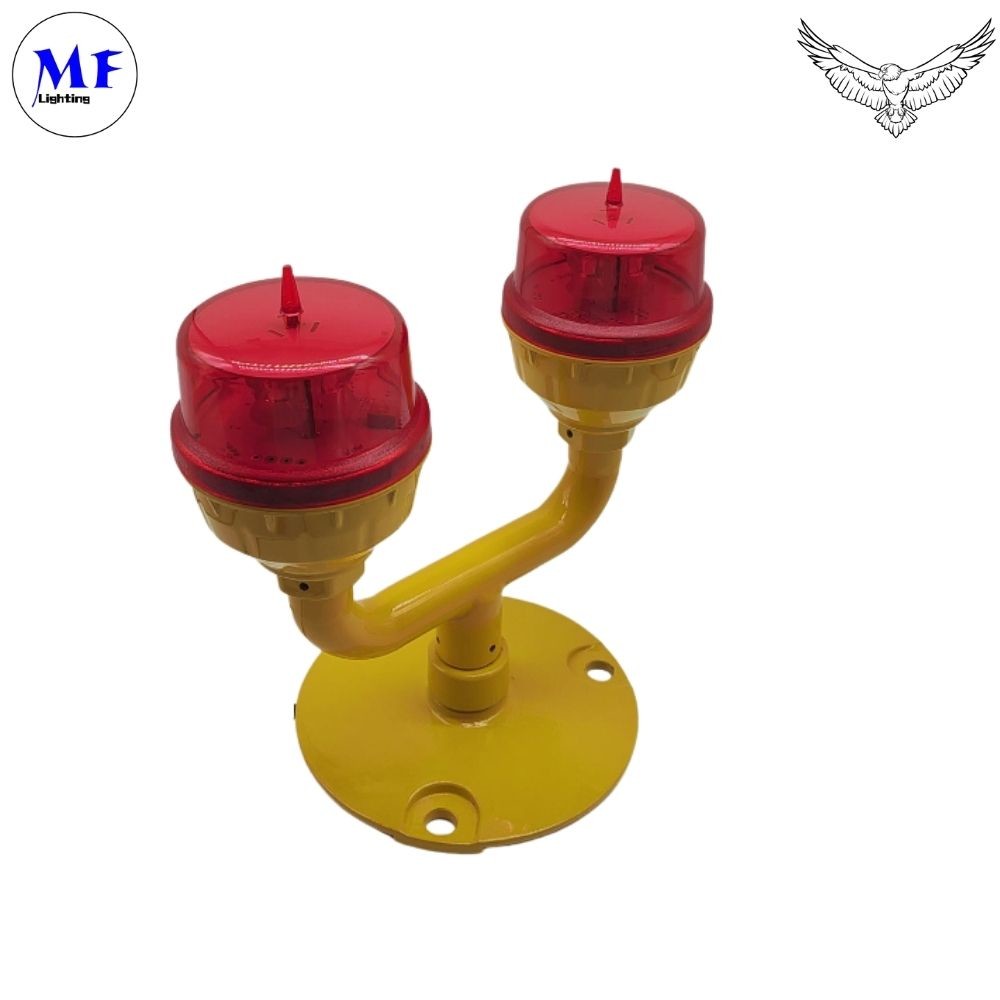

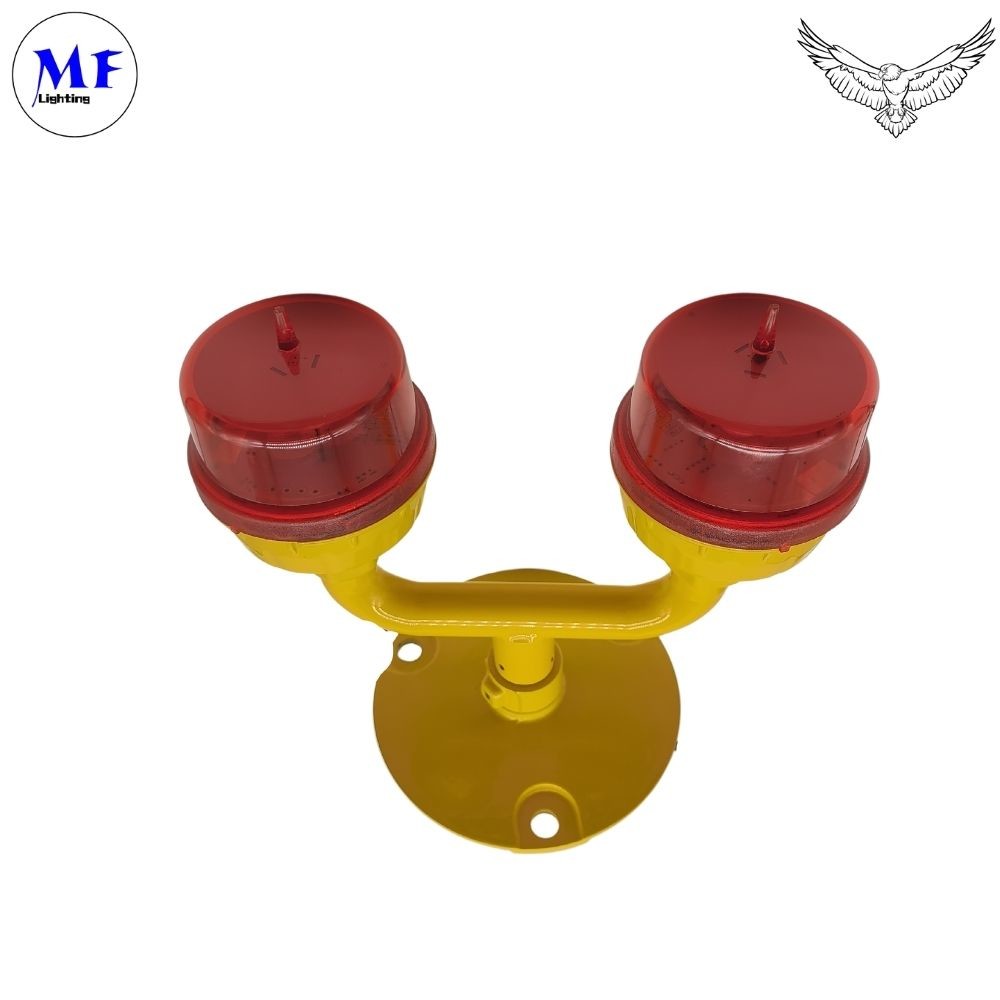

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge

Features:

1. High reliability

Automatic switching of main and backup lamps to ensure continuous marking.

Lightning protection, in accordance with IEC standard.

Integrated circuit protection against abnormalities.

2. Strong environmental adaptability

IP66 waterproof rating.

Operating temperature -40ºC to 65ºC, storage temperature -55ºC to 70ºC.

Resistant to wind speed up to 240km/h.

3. Flexible Design

Support DC48V and AC110-240V power supply.

Built-in light control, automatic switching.

Multiple mounting methods for ease of use.

Key Advantages:

1. High Reliability

Main & standby mode ensures continuous operation.

Built-in surge protection.

Long LED life (>100,000 hours).

2. Durability

IP66 waterproof rating.

UV-resistant polycarbonate cover.

Corrosion-resistant die-casting aluminum base.

3. Adaptability

Dual power supply (DC & AC).

Automatic day/night operation.

Optional GPS sync and solar power.

Light Source	LED
Available Colors	Red (Other color is optional)
Intensity (cd)	≥32.5cd (type B), others optional (10cd, 100cd, etc)
Horizontal Output (degrees)	360
Vertical Divergence (degrees)	≥10
Flash Characteristics	Steady-burning/20/30/60 adjustable
Working Mode	Main & stand by (other modes are optional)
Operation Mode	Dusk-to-dawn Automatically as standard. 24 hours operation as option.
LED Life Experience (hours)	>100,000
Operating Voltage	DC(48VDC) & AC(110-240VAC) or others

Power (W)	5
Electrostatic	IEC61000-4-2 Contact discharge 8kV
Circuit Protection	Integrated
Body Material	Polycarbonate
Base Material	Die-casting aluminum

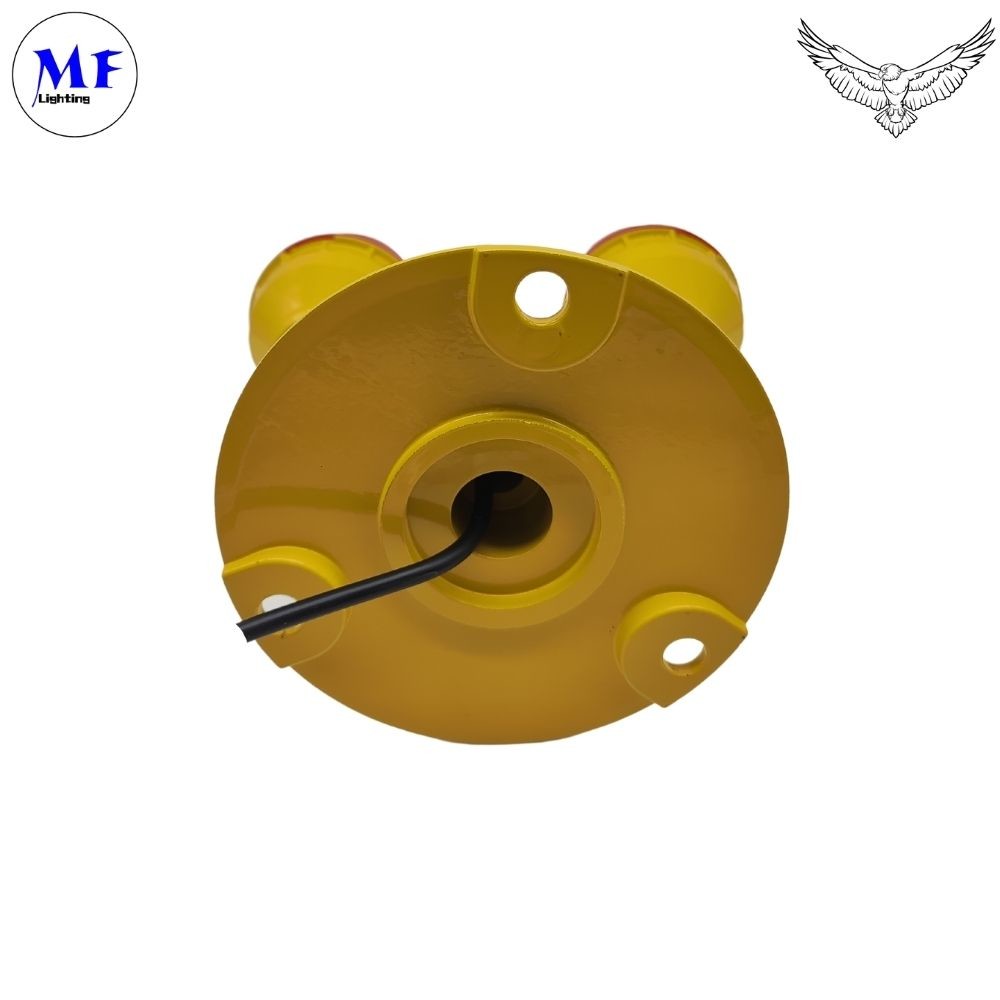

Mounting	3/4 inch pipe thread or D140mm×M10*3
Dimension (mm)	254×90×210 or 254×165×250
Weight (kg)	1.5 or 2
Product Life Expectancy	10 years plus
