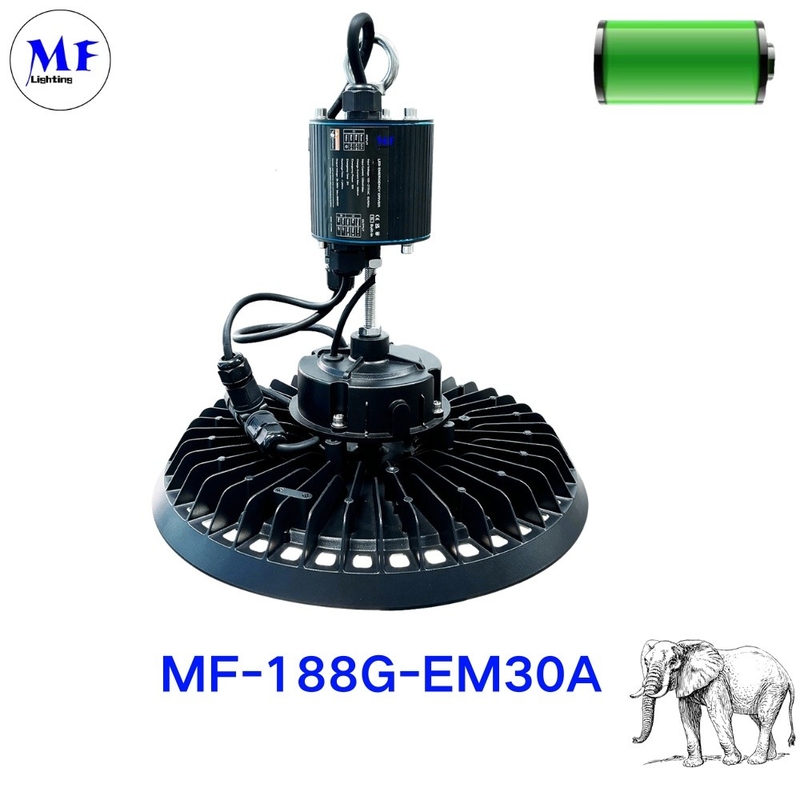

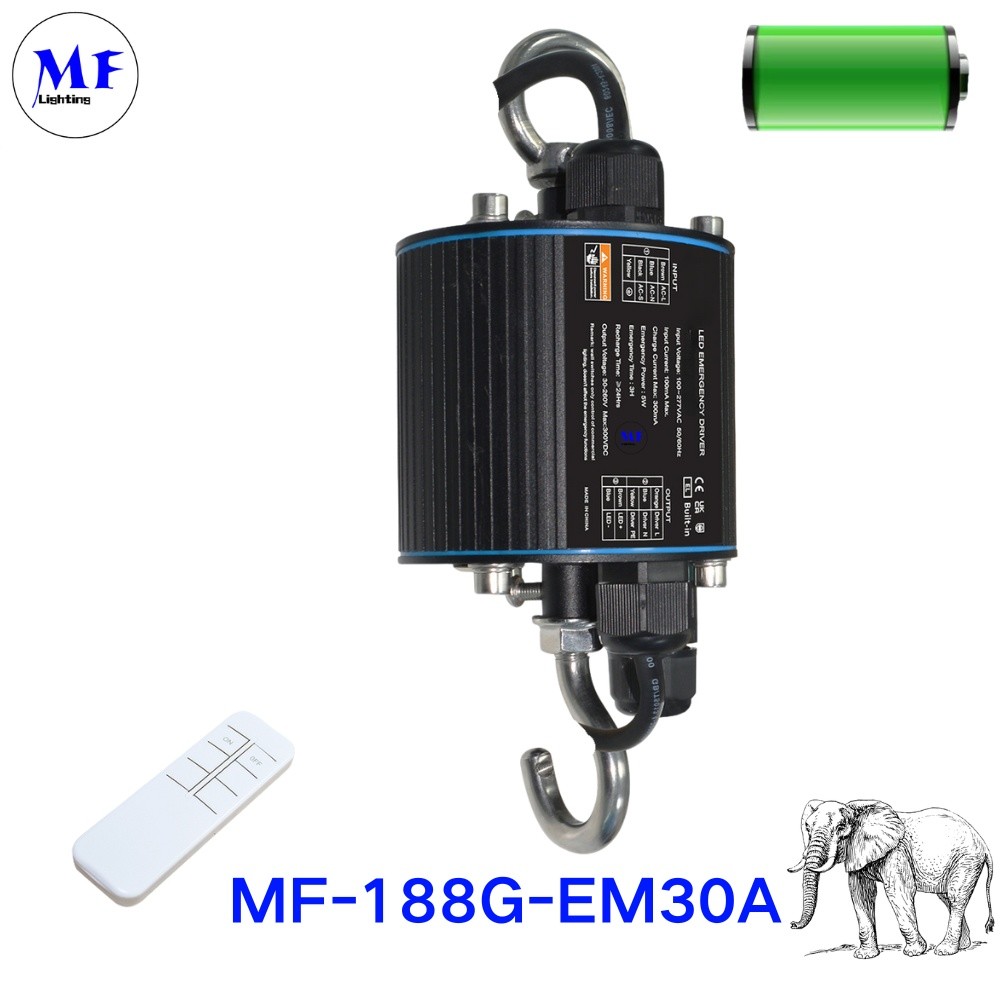

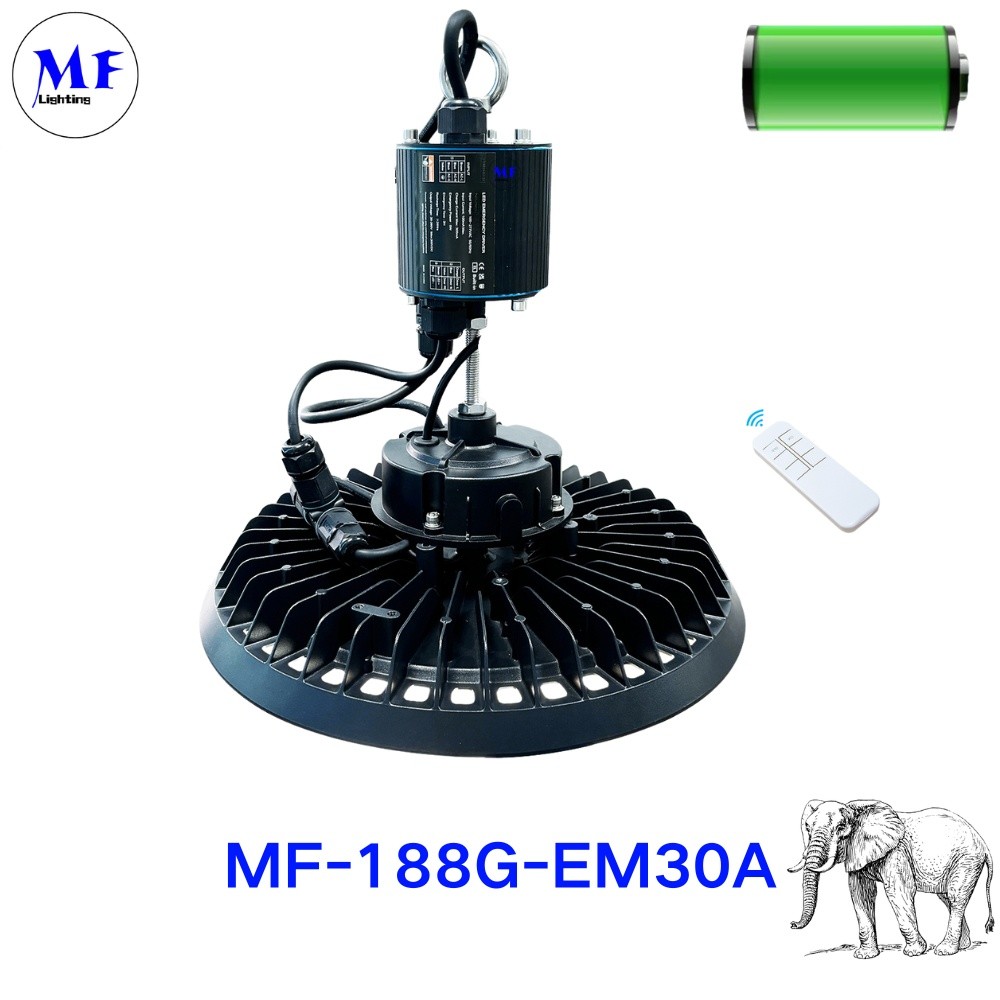

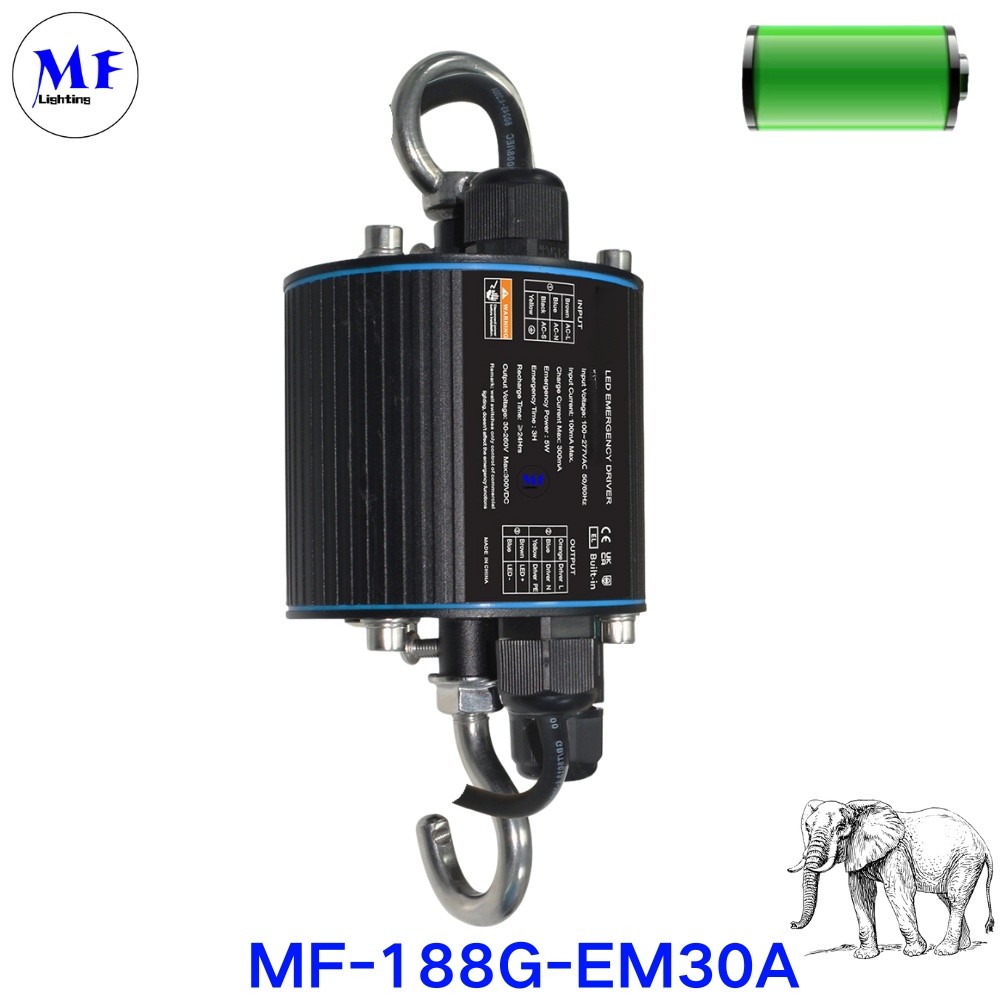

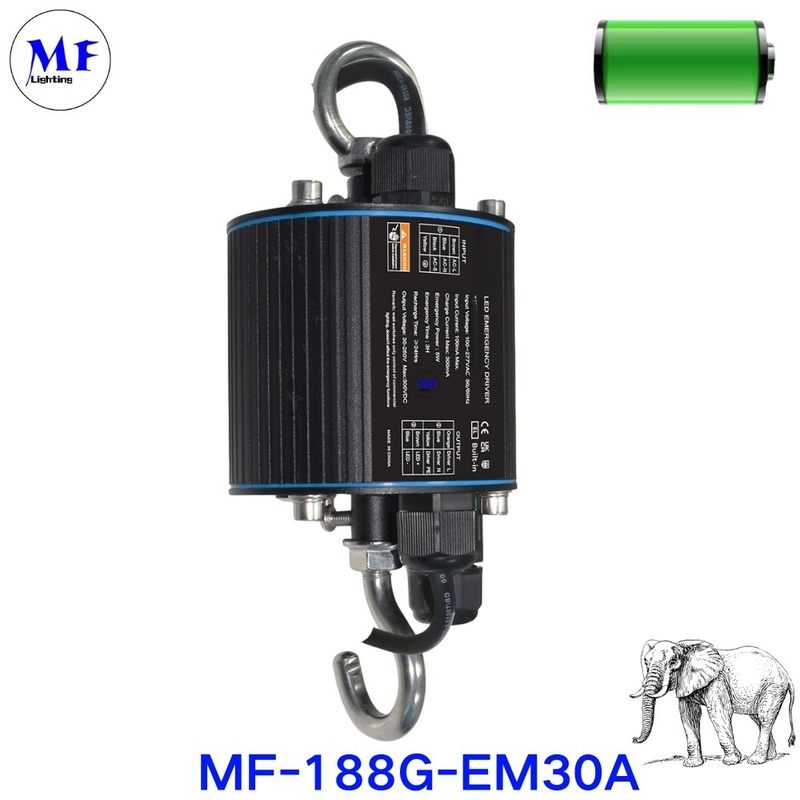

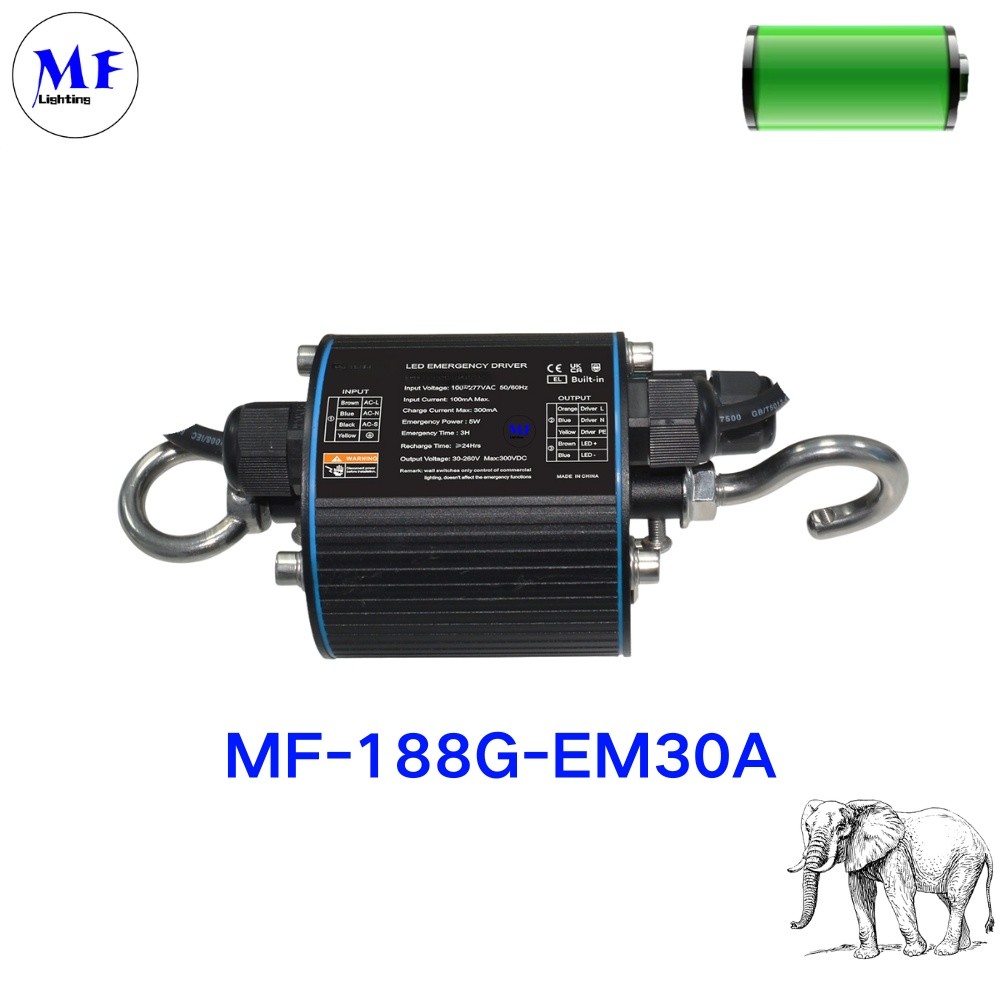

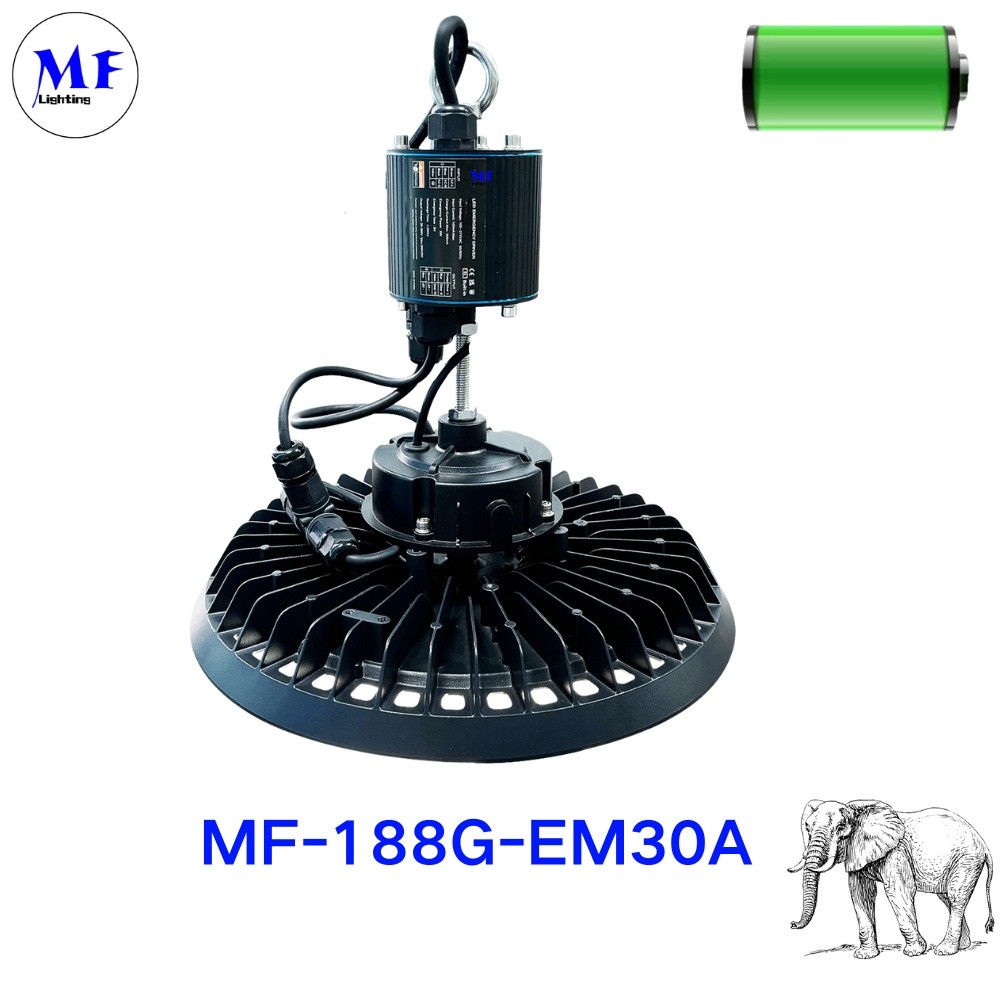

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

Contactar ahora

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

Cantidad de orden mínima :	1 PCS	Precio :	USD
Detalles de empaquetado :	En cartón	Tiempo de entrega :	Entre 5 y 8 días hábiles
Condiciones de pago :	En el caso de las empresas que no cumplen con los requisitos de la presente Directiva, el importe de	Capacidad de la fuente :	10000 piezas/mes

Lugar de origen:	China	Nombre de la marca:	MF
Certificación:	CE, RoHS	Número de modelo:	Se aplicará el método de evaluación de la calidad de los productos.

Información detallada
Válvula de entrada universal:	El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef	Corriente de entrada de CA:	200mamax
Potencia entrada:	12w máximo	Válvula de salida:	170
Poder de emergencia:	El valor de las emisiones de dióxido de carbono es el valor de las emisiones de dióxido de carbono.	Tiempo de recarga:	24 horas
Tiempo de descarga:	90 minutos	Batería:	Li-Ion
Temperatura ambiente:	32~122f(0~50°c)	Peso:	5.10 libras (2.2 kg)
Resaltar:	Triproof Light LED Emergency Driver , IP66 LED Emergency Driver , Ballast LED Emergency Driver

Descripción de producto

High Bay Light LiFePO4 Battery Back Up IP65 15W-3H/20W-2H/30W-1.5H Discharge Time Self-detect LED Emergency Driver Power Supply Emergency Conversion Kit

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 0

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 1

descriptions:

self-detect
constant power emergency output
apply to constant current driver external lighting products
LiFePO4 using together
battery: over-charge/discharge protection and short circuit protection
working environment: temp.: 0 to 60°C
IP65 standard
not suitable for high risk lighting environment
Accessories: integrated waterproof button and indicator light, remote control
3years warranty

Input voltage	220-240Vac, 50/60Hz
Input current	0.003A Max. @230Vac
Charging power:	5.0W max.
Power factor	>0.5
Emergency output Voltage	DC100-260V,DC300V Max.
Emergency output Current:	58-150mA/ 75-200mA/115-300mA
Case temperature	to 60ºC Max.
IP Rating	IP 65
Warranty	3 Years
Battery Data	Li-ion 2.6Ah 7.4V
Discharging time&Power	5W 3H

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 2

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 5

LED indicator:
Green breathing pattern: charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second: Load failure during emergency mode, open circuit/short circuit
Green flashing: Emergency status one per second

Remote control:
1: 0S < Key ON ≤1S, Enter a simulated state of emergency, the green indicator blinks once every second
2: 0S < Key OFF ≤1S, In simulated emergency situations, return to the normal charging state
3: 0S < Key OFF ≤1S, In the emergency state, the emergency state is turned off.

Self-test:
When emergency driver is on power, every 180 days ±1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 6

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 8

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 9

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 11

Application:
school,hospital,subway,train station,shoppingmall,supermarket,airport,office, factory,hotel,basement,parking lot,public place

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 12
